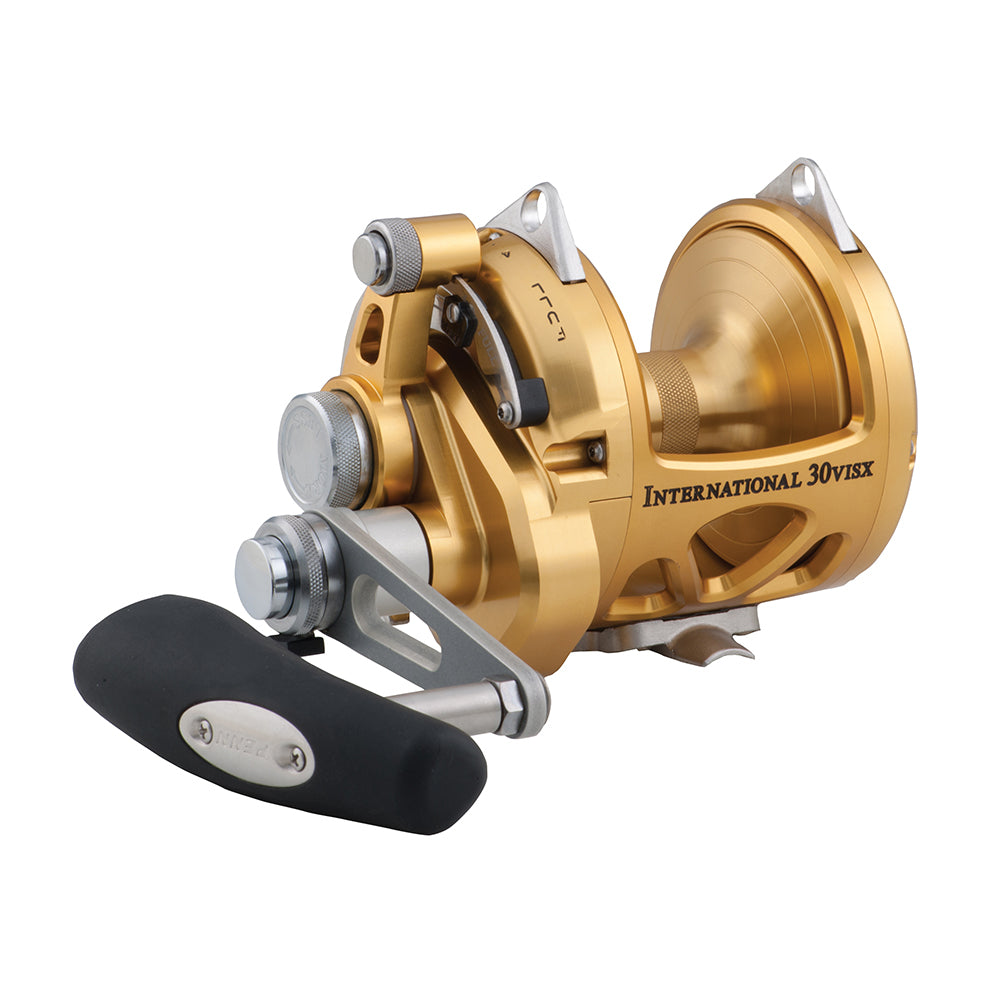

Penn International VISX
The PENN International VI series is designed and manufactured in the USA of domestic and imported components. Precision machined from high-strength, lightweight, aircraft grade aluminium in our Philadelphia machining centre. Our experienced crew has been designing and producing durable, high-quality reels in this facility since 1932. The VI consists of a large stainless steel gear train for strength and speed, and a Dura-Drag system which results in a smoother start up and virtually eliminates hesitation, even under extreme drag settings.
- Machined and anodized aluminium body and side plates
- Stainless steel main and pinion gears
- Quick-Shift II 2-speed system
- Dura-Drag system
- Versa-Strike Adjustable Strike stop
- Double-dog ratchet anti-reverse
- Line Capacity Rings
- Made in the USA of domestic and imported components
- Available in Gold and Silver
| Model |
Mono
Capacity |
Braid
Capacity |
Ratio |
Bearings |
Drag |
Weight |
| 12VISX |
1510/10
1030/12
880/15 |
985/40
840/50
700/65 |
5.1:1 / 1.8:1 |
4+1 |
40lb | 18.1kg |
1535g |
| 16VISX |
745/20
555/30
280/60 |
890/65
765/80
655/100 |
4.6:1 / 1.6:1 |
4+1 |
45lb | 20.4kg |
1800g |
| 20VISX |
490/40
365/50
325/60 |
750/100
625/130
460/200 |
4.1:1 / 1.4:1 |
4+1 |
50lb | 22.6kg |
2260g |
| 30VISX |
590/40
440/50
390/60 |
905/100
750/130
555/200 |
4.1:1 / 1.4:1 |
4+1 |
55lb | 24.9kg |
2320g |

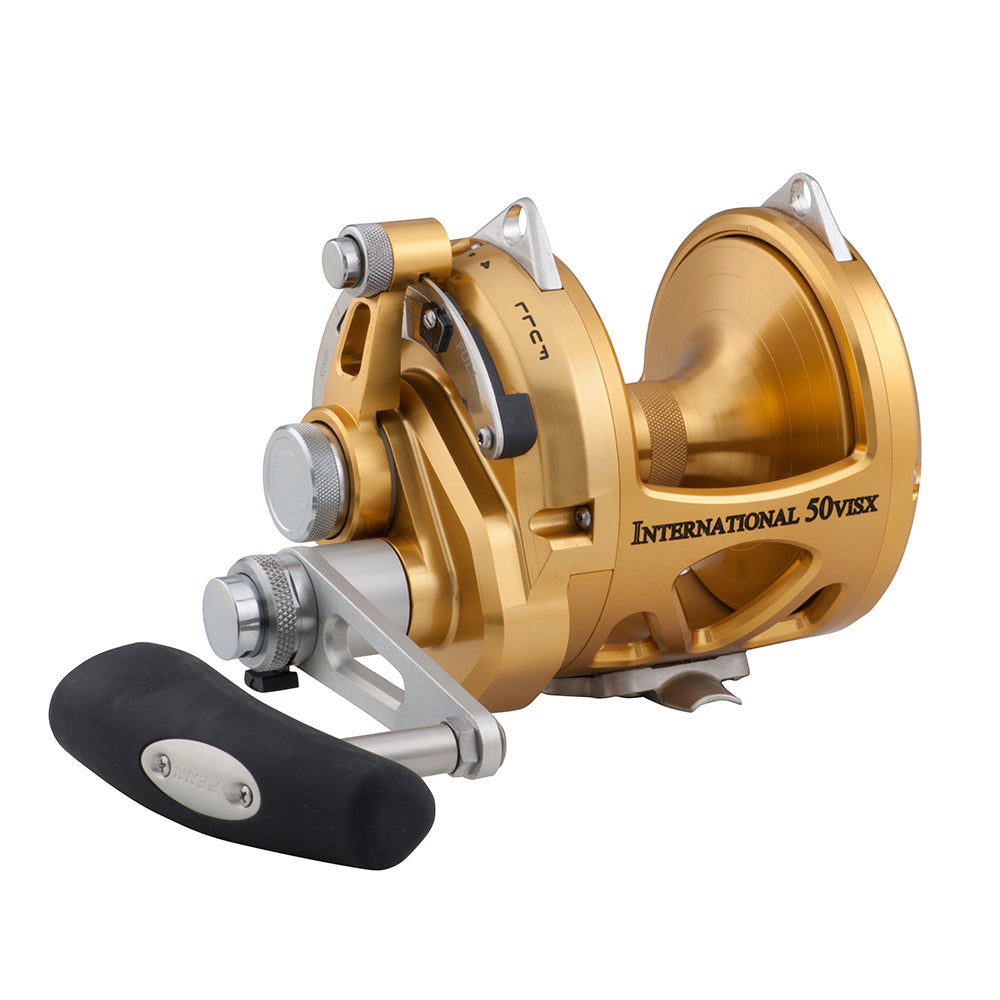

| 50VISX |
870/40
645/50
575/60 |
1330/100
1105/130
815/200 |
3.5:1 / 1.3:1 |
4+1 |
60lb | 27.2kg |
2676g |
