Lowrance Network Expansion Port-2 NEP-2
Lowrance Network Expansion Port-2 NEP-2
000-10029-001
The Lowrance NEP-2 is a plug-and-play Ethernet hub designed to connect multiple marine displays and peripherals into a high-speed data-sharing network. With five Ethernet ports and a 100-megabit switch, the NEP-2 lets you share chart data, waypoints, routes, radar, and sonar across up to four compatible head units. Fully waterproof to IPX7 and running on both 12V and 24V systems, this is the backbone of any serious marine electronics setup.
Key Features
- Five Ethernet ports - connect up to 4 head units per module
- 100-megabit switch for fast, reliable data transfer
- Fully waterproof IPX7 - built for marine environments
- Operates on 12V and 24V DC systems (9.5-32V input range)
- Low power consumption - 500mA max, under 1mA when off
- Multiple NEP-2 units can be linked for larger network expansion
- Compatible with Lowrance HDS, Simrad NSS/NSE/NSO, and B&G units
Specifications
| Spec | Detail |
|---|---|
| Ports | 5 x Ethernet (yellow 5-pin) |
| Data Speed | 100 Mbps |
| Power Input | 9.5 - 32V DC (12V/24V) |
| Max Draw | 500mA |
| Waterproof Rating | IPX7 |

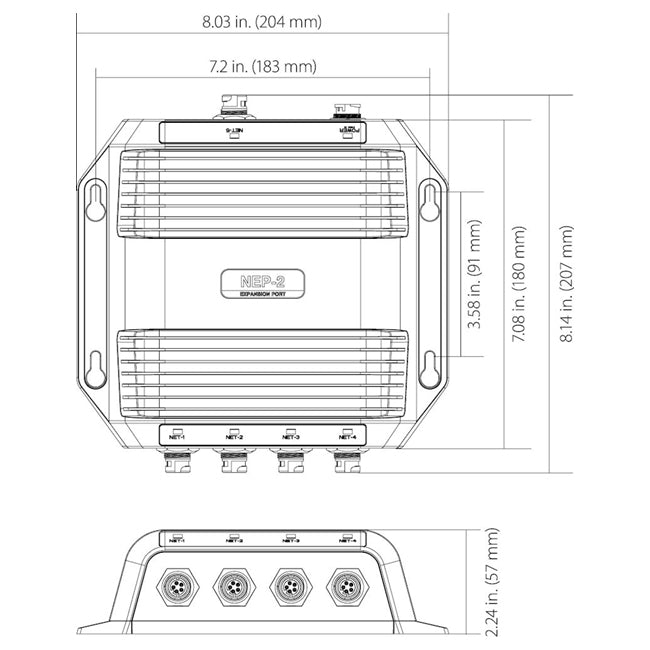

| Dimensions | 210 x 194 x 58mm |
| Weight | 0.825kg |
| Operating Temp | -28°C to +75°C |
Target Species & Techniques
Not a fish-catching tool directly, but an essential piece of marine electronics infrastructure for boats running multiple Lowrance or Simrad displays. Enables seamless data sharing between chartplotters, radar, sounder modules, and StructureScan units - giving you a fully integrated electronics package for finding and catching fish more efficiently.
