Simrad S2009 Echosounder 9

Simrad S2009 Echosounder 9in

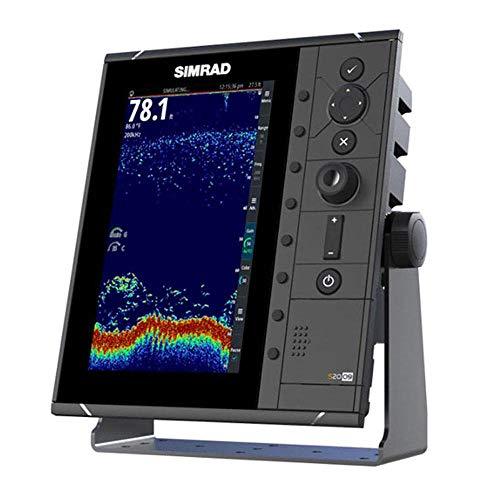

The S2009 combines CHIRP-enabled sonar with a 9-inch portrait display for maximum vertical detail, and intuitive keypad-driven operation for reliable control in all conditions. This dedicated echosounder integrates seamlessly with other Simrad displays, while offering charter captains and long-range sportfishing vessels the reliability of a self-contained sonar platform.

Integrated CHIRP Echosounder
S2000 series displays feature a built-in echosounder module with CHIRP technology to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar. Simrad technology makes CHIRP available not only for special-purpose CHIRP transducers, but also for traditional single-frequency transducers. This offers a cost-effective upgrade to CHIRP technology by installing an S2000 series fish finder for use with your existing transducer. Installation is simple thanks to a plug-and-play port for Simrad and Airmar transducers with blue seven-pin connectors, and a range of optional adapters to enable easy retrofit to other transducer types.

9-inch Portrait Display
The S2009 maximises screen size where limited mounting space is available, with a compact 9-inch portrait display that’s perfect for centre consoles. Its vertical layout shows the water column with a high level of detail, making it easy to distinguish individual fish arches and other key features. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, enabling one-button access to key settings and features. With reliable, long-life operation and clear tactile feedback, the S2009’s large buttons are suitable for use in rough seas, while travelling at speed, and with wet or gloved hands.

Networking & Expansion
It’s easy to share sonar data with other Simrad displays over an Ethernet network. S2000 series fish finders can also be used as dedicated displays for the built-in sonar module on Ethernet-connected Simrad multifunction displays, freeing your main display for other purposes such as navigation or radar. Other devices can be integrated via NMEA 2000® and NMEA 0183® connectivity, enabling additional functionality such as marking a waypoint on your chartplotter straight from the fish finder’s history in order to revisit a promising spot.

Integrated 9-inch portrait display
High brightness ideal for outside installation
High depth penetration and ping speed
Simple operation with 8 direct-access menu keys
Customise your view to highlight targets of interest
Bracket or flush-mount installation (bracket included)

Display
Display Resolution: 480 x 800
Screen Brightness: 1200 cd/m2
Viewing Angles: 110 x 160

Physical
Compass Safe: 0.65 m (25.6")
Dimensions W x H x D: 224 x 260 x 61 mm (8.8 x 10.2 x 2.4 in)
Weight: 2 kg (4.4 lbs)

Electrical
Power Consumption max: 11 W
Power Consumption typical: 11 W
Recommended Fuse Rating: 3A
Supply Voltage: 12/24VDC (10.8 - 31.2 VDC)
